Karatteristiċi
• TX Teejet Hollow Cone Spray Nozzles sprej sprej fin b'ċirku vojt

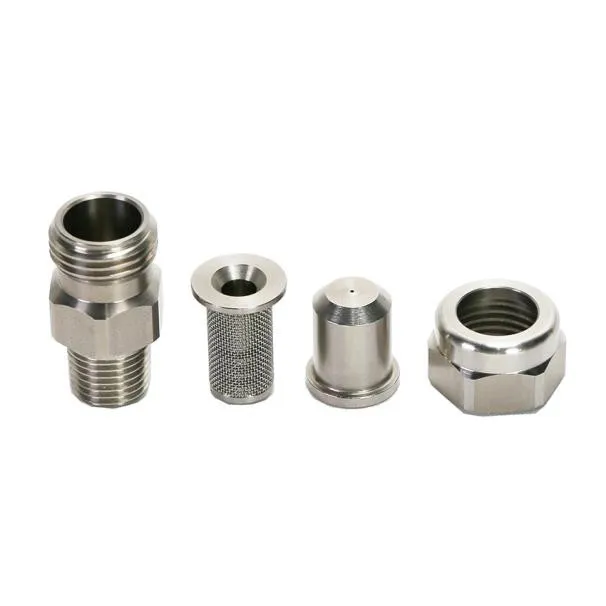

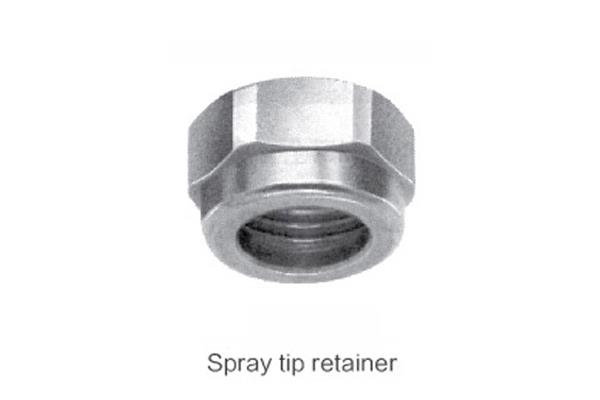

• Iż-żennuni tal-isprej TX Teejet Hollow Cone huma kkombinati bil-ġisem, il-ponta, il-filtru u l-kontenitur. Tips jistgħu jiġu ordnati separatament
• Angoli tal-isprej jinkludu angolu standard u angolu wiesa '
• Konnessjonijiet: 1/4” sa 3/8” (NPT maskili u femminili u BSPT)
• Firxa tal-pressjoni operattiva: sa 400 psi (25 bar)
TX
Ponta tal-kon vojta b'angolu ta' sprej standard
Il-ponta tas-serje TX tista 'tagħti sprej taċ-ċpar fin b'distribuzzjoni uniformi fi pressjoni baxxa
T-W
Ponta tal-kon vojta b'angolu wiesa' tal-isprej
Il-ponta tas-serje TW għandha l-istess karatteristiċi ma 'TX, iżda tista' tisprejja angolu usa '
 TX Teejet Żennuni tal-isprej tal-kon vojt |  TW Teejet Żennuni tal-isprej tal-kon vojta minn ġewwa |
Applikazzjoni Ġenerali
1) Tkessiħ
2) Soppressjoni tat-trab
3) Trattament kimiku
4) Ħasil jew tindif
Angolu Dojoq
 |  |
Stil Nru. | Orifiċju Dia. | Iffiltra malji | Rata tal-fluss (L/Siegħa) | Angolu tal-isprej | |||||||||
2 bar | 3 bar | 4 bar | 5 bar | 6 bar | 7 bar | 10 bar | 15 bar | 25 bar | 1.5 bar | 3 bar | |||
TX0.60 | 0.36 | 200 | - | - | - | 2.9 | 3.1 | 3.3 | 3.9 | 4.6 | 5.7 | - | - |
TX1 | 0.51 | 100 | - | 3.9 | 4.4 | 4.8 | 5.2 | 5.6 | 6.4 | 7.6 | 9.4 | - | 54° |
TX1.25 | 0.56 | 100 | - | 4.9 | 5.4 | 6.1 | 6.5 | 7.0 | 8.1 | 9.5 | 11.8 | - | 59° |
TX1.5 | 0.61 | 100 | - | 5.9 | 6.6 | 7.3 | 7.8 | 8.3 | 9.7 | 11.4 | 14.0 | - | 63° |
TX2 | 0.71 | 100 | 6.6 | 7.9 | 8.9 | 9.8 | 10.6 | 11.4 | 13.3 | 15.8 | 19.8 | 40° | 68° |
TX2.5 | 0.79 | 100 | 8.2 | 9.8 | 11.1 | 12.3 | 13.3 | 14.2 | 16.6 | 19.8 | 24.7 | 48° | 70° |
TX3 | 0.86 | 100 | 9.9 | 11.8 | 13.3 | 14.7 | 15.9 | 17.0 | 19.9 | 23.8 | 29.7 | 57° | 72° |
TX4 | 1.0 | 50 | 13.1 | 15.7 | 17.9 | 19.9 | 21.6 | 23.1 | 27.2 | 32.8 | 41.4 | 61° | 73° |
TX5 | 1.1 | 50 | 16.3 | 19.7 | 22.4 | 24.8 | 27 | 28.9 | 34.0 | 41.0 | 51.7 | 63° | 73° |
TX6 | 1.2 | 50 | 19.6 | 23.6 | 26.9 | 29.8 | 32.4 | 34.7 | 40.8 | 49.0 | 62.0 | 65° | 74° |
TX8 | 1.4 | 50 | 26.0 | 31.5 | 36.2 | 40.2 | 43.1 | 47.2 | 56.0 | 68.0 | 86.8 | 66° | 74° |
TX10 | 1.5 | 50 | 32.4 | 39.4 | 45.2 | 50.3 | 53.9 | 59.1 | 70.0 | 85.0 | 108.5 | 68° | 75° |
TX12 | 1.7 | 50 | 38.9 | 47.3 | 54.2 | 60.3 | 64.7 | 70.9 | 84.0 | 102.0 | 130.2 | 69° | 76° |
TX14 | 1.8 | 50 | 45.2 | 55.2 | 63.7 | 71.2 | 77.9 | 84.1 | 100.2 | 122.7 | 158.0 | 70° | 76° |
TX18 | 2.0 | 50 | 58.1 | 71.0 | 81.9 | 91.5 | 100 | 108.1 | 129.0 | 157.8 | 203.2 | 71° | 77° |
TX22 | 2.2 | 50 | 71.0 | 86.8 | 100.1 | 111.8 | 122.4 | 132.1 | 157.7 | 192.8 | 248.4 | 71° | 78° |
TX26 | 2.4 | 50 | 83.9 | 102.6 | 118.3 | 132.1 | 144.6 | 156.0 | 186.4 | 227.9 | 293.6 | 72° | 78° |
Angolu Wide
 |  |
Stil Nru. | Orifiċju Dia. | Iffiltra malji | Rata tal-fluss (L/Siegħa) | Angolu tal-isprej | |||||||||
1 bar | 1.5 bar | 2 bar | 3 bar | 4 bar | 5 bar | 6 bar | 7 bar | 1.5 bar | 3 bar | 6 bar | |||
T2W | 0.79 | 100 | - | - | 6.4 | 7.9 | 9.1 | 10.2 | 11.2 | 12.1 | 130° | 140° | 136° |
T3W | 0.99 | 100 | - | 8.4 | 9.7 | 11.8 | 13.7 | 15.3 | 16.7 | 18.1 | 138° | 140° | 137° |
T4W | 1.1 | 50 | - | 11.2 | 12.9 | 15.8 | 18.2 | 20.4 | 22.3 | 24.0 | 140° | 140° | 138° |
T5W | 1.3 | 50 | 11.4 | 14.0 | 16.1 | 19.7 | 22.8 | 25.4 | 27.9 | 30.1 | 140° | 140° | 138° |
T6W | 1.4 | 50 | 13.7 | 16.7 | 19.3 | 23.7 | 27.3 | 30.6 | 33.6 | 36.2 | 140° | 140° | 138° |
T8W | 1.6 | 50 | 18.2 | 22.3 | 25.8 | 31.6 | 36.5 | 40.8 | 44.6 | 48.2 | 140° | 140° | 136° |
T10W | 1.8 | 50 | 22.8 | 27.9 | 32.2 | 39.5 | 45.6 | 51.0 | 55.8 | 60.3 | 140° | 140° | 136° |
T12W | 2.0 | 50 | 27.3 | 33.5 | 38.6 | 47.4 | 54.7 | 61.0 | 67.0 | 72.3 | 140° | 140° | 136° |
Deskrizzjoni
| Mudell | TX；TW |
Konnessjoni tad-daħla | 1/4'';3/8'' |
Mudell tal-isprej | Kon vojt |
Angolu tal-isprej | 140°/138°/137°/136°/130°/78°/77°/76°/75°/74°/73° /72°/71°/70°/69°/68°/66°/65°/63°/61°/59° /57°/54/48°/40° |
Applikazzjoni | Tkessiħ tal-gass; Tneħħija tat-trab; Trattament kimiku; Tindif |
Informazzjoni dwar l-ordnijiet
TX | 1/4’’ | SS | 1.25 |
↓ | ↓ | ↓ | ↓ |
Tip taż-żennuna | Daqs tal-ħajt | Materjal | Kodiċi tal-fluss |
