Karatteristiċi

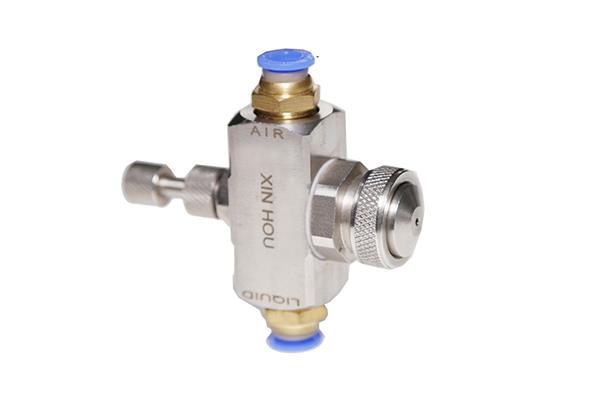

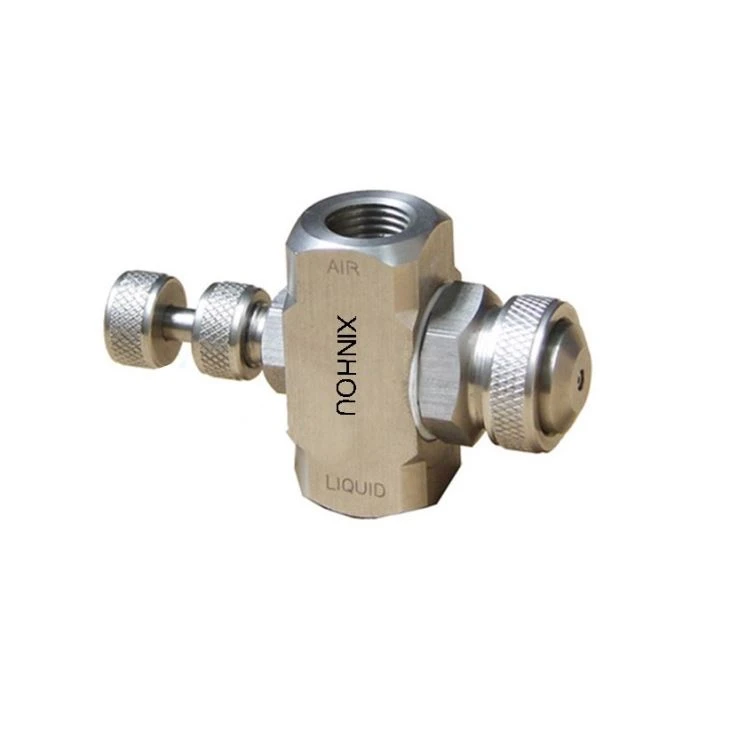

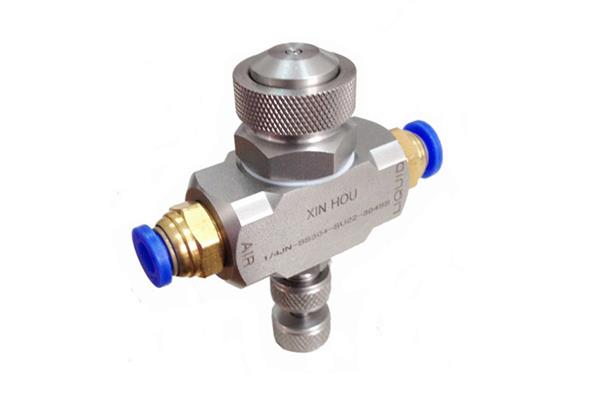

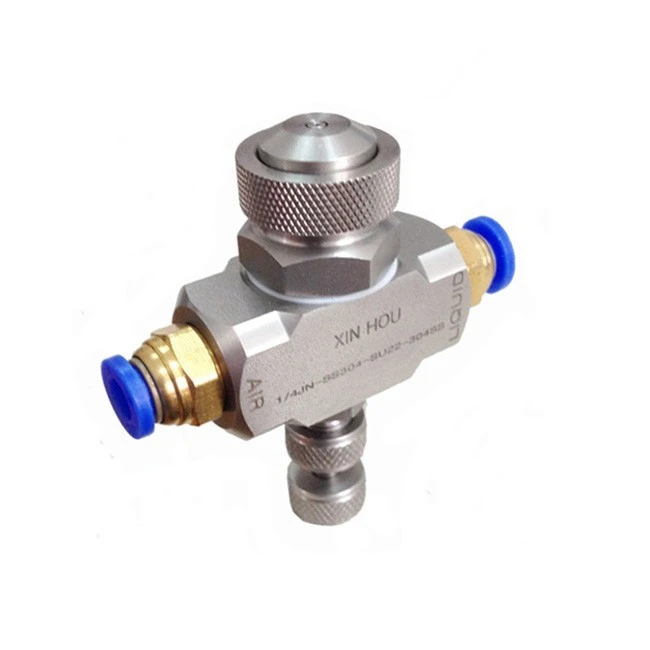

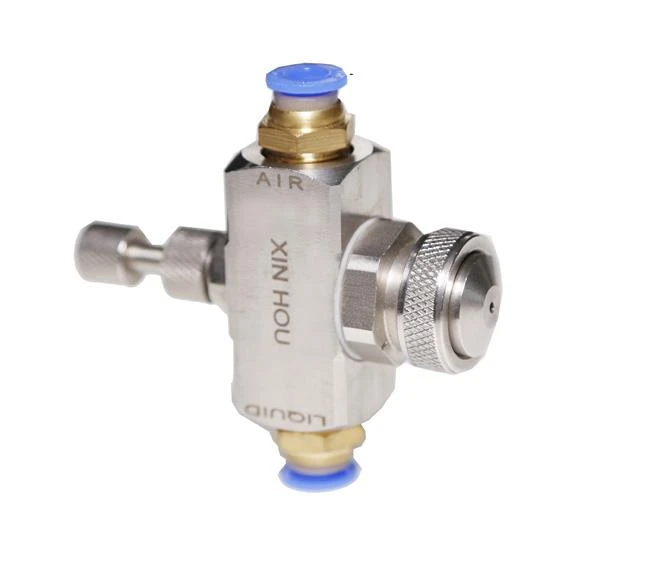

• Żennuni tal-Atomizzazzjoni tal-Ajru tal-Isprej Tondi b'Sifun-Fed jipproduċu sprej taċ-ċpar tal-mudell tal-kon sħiħ.
• L-isprej huwa atomizzat fin, ċpar jew sprej taċ-ċpar.
• Il-pressjoni ta 'l-arja hija ġeneralment 2 -3 bar. Pressjoni likwida tista 'jew ma tistax tkun meħtieġa.
• Rata tal-fluss aġġustabbli tippermetti għażliet differenti ta 'kapaċitajiet.
 Żennuni tal-Atomizzazzjoni tal-Ajru tal-Isprej Tondi b'Sifun Fed |  Żennuni tal-Atomizzazzjoni tal-Ajru tal-Bexx b'Sifun |
Applikazzjoni Ġenerali
1) Kisi, tkessiħ, umidifikazzjoni
2) Tkessiħ tal-gass
3) Lubrikazzjoni, niedja
4) Ċpar, ċpar
5) Soppressjoni tat-trab
Deskrizzjoni
Mudell | ĠN |
Tip | Aġġustabbli |
Mudell tal-isprej | Round |
Mod tax-xogħol | Sifun-Fed |
Ħallat | Intern |
Parametru
Isprej set-up Nru. | Kap tal-likwidu& Kap tal-arja Nru. | Atomizzazzjoni tal-arja | Kapaċità tal-likwidu (L/h) | Distanza tal-bexx f'għoli tas-sifun ta' 20cm | |||||||||
Pressjoni tal-arja | Kapaċità tal-arja | Kap tal-gravità | Għoli tas-sifun | ||||||||||
45 (ċm) | 30 (ċm) | 15 (ċm) | 10 (ċm) | 20 (ċm) | 60 (ċm) | 90 (ċm) | Pressjoni ta' l-arja (bar) | Angolu tal-isprej | D (m) | ||||
SUJ1A | Kap tal-likwidu 1650 | 0.7 | 11.3 | 1.5 | 1.3 | 1.1 | 0.87 | 0.68 | - | - | 0.7 | 18° | 1.8 |
1.5 | 17.0 | 1.8 | 1.7 | 1.5 | 1.3 | 1.2 | 0.62 | - | 1.5 | 18° | 1.9 | ||
3.0 | 28 | 2.1 | 1.9 | 1.7 | 1.5 | 1.4 | 1.1 | 0.76 | 3.0 | 18° | 2.3 | ||
4.0 | 36 | 2.2 | 2.0 | 1.8 | 1.6 | 1.5 | 1.2 | 0.87 | 4.0 | 18° | 2.6 | ||
SUJ1A | Kap tal-likwidu J2050 | 0.7 | 11.3 | 2.4 | 2.1 | 1.7 | 1.5 | 1.2 | - | - | 0.7 | 18° | 2.1 |
1.5 | 20 | 2.8 | 2.6 | 2.4 | 2.1 | 1.9 | 0.91 | - | 1.5 | 18° | 2.3 | ||
3.0 | 32 | 3.4 | 3.1 | 2.9 | 2.8 | 2.6 | 1.7 | 1.1 | 3.0 | 18° | 2.6 | ||
4.0 | 41 | 3.7 | 3.4 | 3.3 | 3.1 | 2.9 | 2.1 | 1.5 | 4.0 | 19° | 3.0 | ||
SUJ2A | Kap tal-likwidu J2050 | 0.7 | 23 | 2.5 | 2.3 | 2.0 | 1.6 | 1.4 | - | - | 0.7 | 18° | 2.4 |
1.5 | 36 | 2.9 | 2.8 | 2.5 | 2.2 | 2.0 | 0.89 | - | 1.5 | 18° | 2.7 | ||
3.0 | 58 | 3.4 | 3.3 | 3.2 | 2.9 | 2.8 | 1.9 | 1.2 | 3.0 | 19° | 3.4 | ||
4.0 | 74 | 3.7 | 3.6 | 3.5 | 3.4 | 3.3 | 2.5 | 2.0 | 4.0 | 20° | 4.0 | ||
SUJ2 | Kap tal-likwidu J2850 | 0.7 | 19.3 | 4.5 | 4.0 | 3.4 | 2.1 | 1.8 | - | - | 0.7 | 21° | 3.0 |
1.5 | 31 | 5.3 | 4.9 | 4.4 | 3.5 | 2.9 | 1.8 | - | 1.5 | 21° | 3.4 | ||
3.0 | 50 | 6.0 | 5.6 | 5.0 | 4.4 | 4.0 | 2.4 | 1.2 | 3.0 | 21° | 4.0 | ||
4.0 | 65 | 5.7 | 5.4 | 5.0 | 4.2 | 3.9 | 2.8 | 1.9 | 4.0 | 22° | 4.6 | ||
SUJ4 | Kap tal-likwidu J60100 | 1.5 | 58 | 22 | 19.9 | 16.3 | 12.3 | 10.5 | 2.8 | - | 1.5 | 17° | 3.7 |
3.0 | 88 | 25 | 23 | 19.5 | 16.7 | 14.2 | 6.4 | 2.8 | 3.0 | 18° | 4.3 | ||
4.5 | 111 | 26 | 24 | 21 | 18.4 | 15.7 | 7.9 | 4.5 | 4.0 | 18° | 4.9 | ||
5.6 | 147 | 26 | 24 | 22 | 19.7 | 17.0 | 9.8 | 6.1 | 5.6 | 19° | 5.5 | ||
SUJ4B | Kap tal-likwidu J100150 | 2.0 | 144 | - | - | - | 27 | 22 | - | - | 2.0 | 20° | 6.7 |
3.0 | 190 | - | - | - | 30 | 26 | - | - | 3.0 | 20° | 7 | ||
4.0 | 240 | - | 43 | 40 | 31 | 28 | 11.0 | - | 4.0 | 21° | 7.6 | ||
5.6 | 315 | 44 | 42 | 39 | 31 | 28 | 16.7 | 8.3 | 5.6 | 22° | 8.2 | ||
Informazzjoni dwar l-ordnijiet
ĠN | 1/4’’ | SS | SUJ1A | SS |
↓ | ↓ | ↓ | ↓ | ↓ |
Tip taż-żennuna | Daqs tal-ħajt | Kodiċi tal-materjal tal-kappa tal-arja | Bexx devoice Nru. | Kodiċi tal-materjal għatu likwidu |
Stampi tal-applikazzjoni

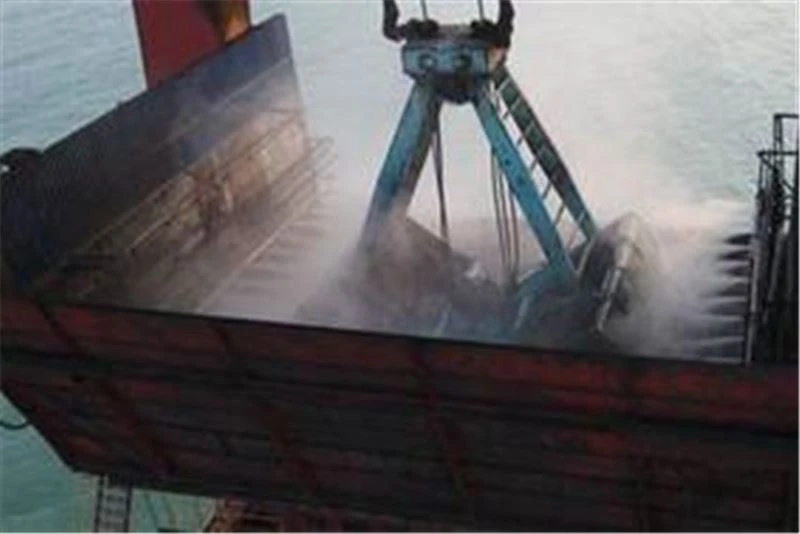

Kontroll tat-trab
